Car entertainment system

CSP550/98

Car entertainment system

CSP550/98

Your mobile music theater

Play your music loud without distortion with the 13cm Philips Car component speaker system CSP550. With peak music power at 210W and an external crossover network to restore high fidelity details, music is presented with clean sound.

Unfortunately this product is no longer available

Car entertainment system

Your mobile music theater

Play your music loud without distortion with the 13cm Philips Car component speaker system CSP550. With peak music power at 210W and an external crossover network to restore high fidelity details, music is presented with clean sound.

Similar products

See all Speakers

Your mobile music theater

with superb sound performance

Strong ferrite magnet for high power performance

Strong ferrite magnet for high power performance

Ferrite is a lightweight but strong material with a permanent and coherent magnetic field. It is the key speaker component that induces the movement of the voice coil and the diaphragm. When an input signal is received, the voice coil acts as an electromagnet that causes the woofer and tweeter diaphragm to either attract or repel. The ferrite magnet produces an even magnetic field for smooth diaphragm movement, ensuring sound output with lower distortion. Using such a stable and highly coercive magnet like ferrite, the voice coil can produce loud sounds while keeping the tone smooth.

Butyl rubber surround for maximum smooth response

Butyl rubber surround for maximum smooth response

Highly responsive butyl rubber connects the woofer diaphragm to the speaker frame to form a surround suspension system. When a sound signal reaches the cone inside the woofer, the stiff yet elastic butyl rubber surround assembly keeps the cone in position, protecting it from strong upward or downward force that may occur when the signal is strong. By doing so, the woofer can withstand the surge of powerful beats and deliver a smooth bass response with a minimum of distortion even from a small speaker.

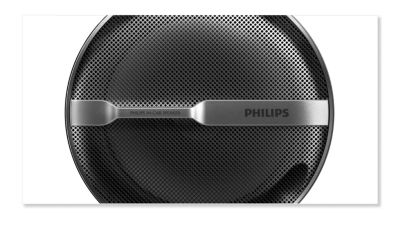

Stylish speaker grille protects against damages

Stylish speaker grille protects against damages

The speaker grille has been designed to give cars the look of luxury. Composed of two parts - a detachable metal mesh casing and a plastic ring, when installed over the speaker, it fully covers the tweeter dome and speaker cone. Hard and durable, it protects the speakers from accidental kicks and curious fingers, both of which can be damaging to their sound performance.

Fiber-composite cone delivers sound with lowest distortion

Fiber-composite cone delivers sound with lowest distortion

Endurance and performance stability in extreme conditions

Endurance and performance stability in extreme conditions.

Soft silk dome tweeter to restore high fidelity details

Silk is ideal material for tweeter domes due to its light weight, high sensitivity and stability, and its tolerance for high temperatures. Inside the tweeter, the small diaphragm (the dome opening) produces high frequency tones. These soft and light silk domes can capture even the highest musical notes, to make your music full of high fidelity details such as warm, mid-range vocals and vivid, lively trebles. The dome shape also spreads the sound around so that you can hear the high notes from every seat in the car.

Sturdy fiber-composite cone for all-weather performance

Sturdy fiber-composite cone for all-weather performance.

Swivel tweeter to optimize high-frequency response

High-frequency sounds are directional. If the tweeter is not pointed in the right direction in your car, you may miss out on having the best sound possible. The tweeters inside these Philips car speakers are able to swivel, allowing you to adjust their direction up to 90 degrees and directing the best sound right to your ears regardless of where they are installed in your car.

Technical Specifications

  • Sound

    Frequency response
    40-35k  Hz
    Output power (RMS)
    40W
    Impedance
    4 Ohms
    Sensitivity
    90dB
    Peak Music Power
    210W
  • Loudspeakers

    Number of ways
    2-way
    Number of Loudspeakers
    4
    Speaker size
    13cm (5.25")
    Speaker type
    Component speaker
  • Accessories

    Cables
    Speaker wires
    Quick start guide
    English, Simplified Chinese
    Speaker grille
    With metal net
    Crossover network
    Passive
    Angle adapter
    2
    Fix frame
    2
    Mounting bracket
    2
  • Dimensions

    Product depth
    159  mm
    Mounting depth
    52 mm
    Product width
    159  mm
    Product height
    69  mm
  • Woofer

    Magnet
    Ferrite
    Surround
    Rubber
    Voice coil
    Single
    Diaphragm
    Cone
    Diaphragm material
    Fiber-composite
    Magnet mass
    11 Oz
    Voice coil material
    Copper
    Damper
    Conex
  • Tweeter

    Magnet
    Neodynium
    Diaphragm
    Dome
    Diaphragm material
    Silk
    Mounting options
    • Angle mounting
    • Flush mounting
    • Surface mounting
    • Swivel mounting
    Size
    36mm (1-2/5" )
