Radiography 7000 C — DigitalDiagnost C90
Ceiling-mounted digital radiography solution
Radiography 7000 C — DigitalDiagnost C90
Ceiling-mounted digital radiography solution
The system allows you to comfortably see more patients per day and shorten patient wait times by decreasing the time to diagnosis with innovative tools that help drive workflow efficiency.
DigitalDiagnost C90’s live tube head camera, versatile room configurations, and exam automation technologies all help assure outstanding patient throughput.
Fast workflow with Eleva Tube Head touch screen
High room utilization and patient throughput
Improved actionable nodule detection with Philips Bone Suppression*
Features
Intuitive workflow
Philips Eleva user interface offers technologists and radiologists the opportunity to personalize user settings to allow a smooth, patient-focused workflow with customizable presets and automation for excellent efficiency. The touch monitor allows technologists to work fast and with a minimum number of clicks.
Eleva Tube Head fast workflow
Philips Eleva Tube Head features a modern smart touch interface and allows the user to quickly change the most vital parameters in daily routine directly at the tube head. The Eleva Tube Head offers a live camera image for improved positioning support.

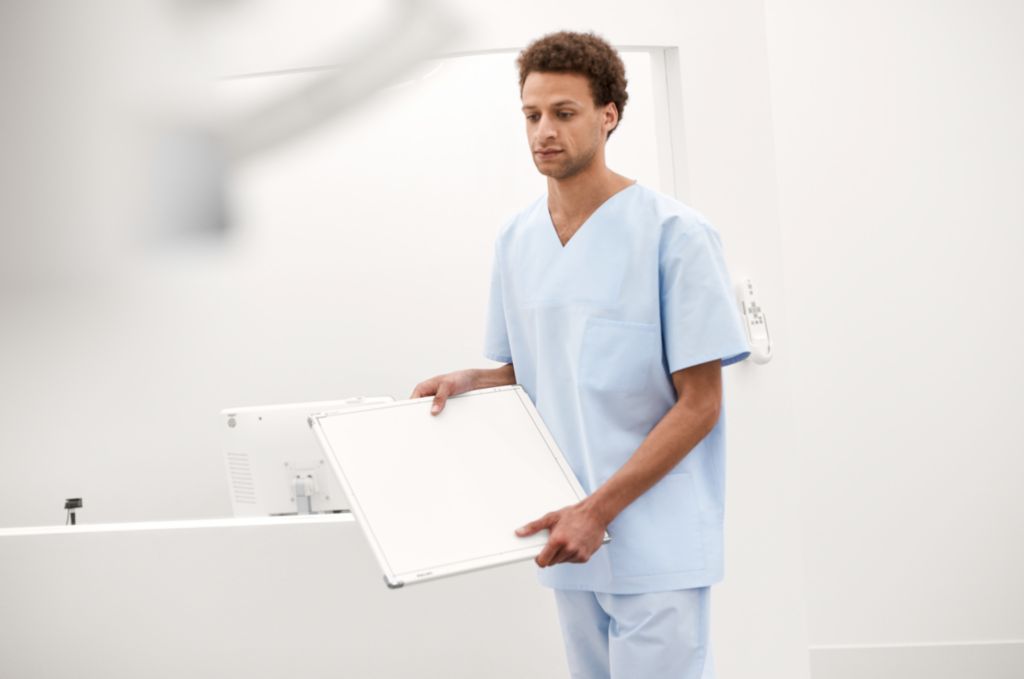

Economic value
DigitalDiagnost offers you the flexibility to tailor a configuration to match your facility’s particular financial and clinical needs. DigitalDiagnost C90 offers multiple detector options and features, such as SkyPlate detector sharing. Use a single detector across multiple compatible Philips DR rooms. This will add to the economic value of your Philips solutions.
Specifications
- Eleva Tube Head
- Full color LCD touch display width
- 30.7 cm (12.1")
- Minimum viewing angle in horizontal and vertical viewing field
- +/- 80°
- Control buttons
- 6 color-coded ctrl. buttons and a capacitive sensor for 3-axis brake release
- Data displayed at the Eleva Tube Head (amongst others)
- Patient data, preview images, generator settings, live camera image
- Height adjustable table
- Height adjustment
- 51.5 cm to 91.5 cm (1' 8.3" to 3')
- Tabletop dimensions
- 240 cm × 75 cm (7' 10.5" × 2' 5.5")
- Tabletop travel range
- longitudinal +/- 60 cm (1' 11"") transverse +/- 12 cm (4.7"")
- Max. patient load
- 375 kg (826.7 lb)
- Vertical movable stand
- Vertical movement range
- 35 cm to 185 cm (13.8" to 6' 0.8")
- Maximum horizontal travel
- 5.5 m (18' 0.5")
- Detector unit dimensions (w × h)
- 59.6 cm × 57.5 cm (23.5" × 22.6")
- Tilt angle
- horizontal axis –20° to +90 (motorized), vertical axis +45° to –23 (manual)
- Movable ceiling suspension
- Travel with Comfort Track and Comfort Move
- longitudinal 3.44 m (11' 3.4")
- Travel with fully motorized Comfort Position (optional)
- longitudinal 3.28 m (10' 9.1")
- Ceiling height at source image distance 110 cm (44")
- 2.83 m to 3.21 m (9' 3.4"’ to 10' 6.4")
- Generator
- Mains voltage
- 380 V / 400 V; 50/60 Hz, 3-phase 480 V; 60 Hz, 3-phase
- Nominal power
- 65 kW or 80 kW
- X-ray tube assembly
- Maximum voltage
- 150 kV
- Focal spot 0.6 mm
- maximum power 33 kW
- Focal spot 1.2 mm
- maximum power 100 kW
- Eleva workspot
- Hard drive
- 240 GB SSD total
- RAM storage capacity
- 16 GB
- Monitor
- 21.3" LCD color touch monitor
- Maximum calibrated brightness
- 400 cd/m2 +/- 10 %
- CD/DVD drive
- 24x CD reader/writer 8x DVD reader/writer
- Large SkyPlate detector
- Type
- Digital Cesium Iodite flat detector
- Detector size
- 35 cm × 43 cm (14" × 17")
- Active area
- 34.48 cm × 42.12 cm (13.6" × 16.6")
- Image matrix size
- 2,330 × 2,846 pixel
- Pixel size
- 148 μm
- Fixed detector
- Type
- Digital Cesium Iodite flat detector
- Detector size
- 43 cm × 43 cm (17" × 17")
- Active area
- 42 cm × 42.5 cm (13.6" × 16.6")
- Image matrix size
- 2,840 × 2,874 pixel
- Pixel size
- 148 μm
