C10-3v Transducer
Broadband curved array transducer with PureWave crystal technology

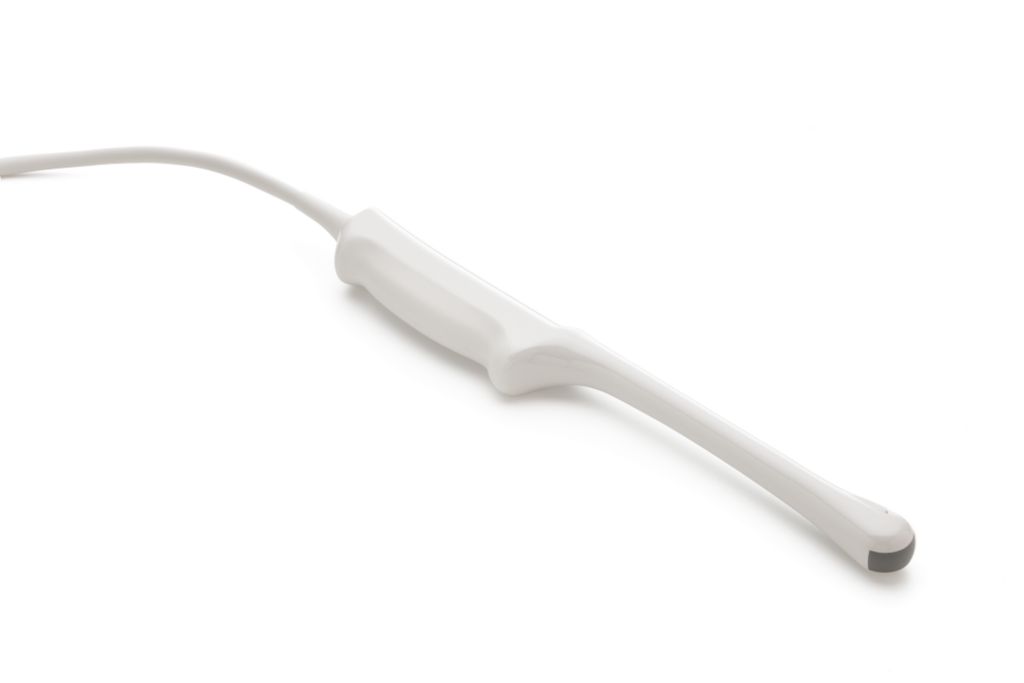

  • Standard product photograph

C10-3v Transducer

Broadband curved array transducer with PureWave crystal technology
The C10-3V Curved Array PureWave crystal transducer offers 10 to 3 Mhz extended operating frequency range for endovaginal applications.The extended operating frequency range and wide field of view of the Philips C10-3v transducer allow for exceptional visualization in GYN, OB, early OB and fertility exams. This endovaginal transducer offers routine and advanced imaging capabilities, including strain-based elastography and support for a variety of biopsy guides.

Clinical image gallery

  • C10-3v Uterus Perfusion with Flow Viewer
    C10-3v Uterus Perfusion with Flow Viewer

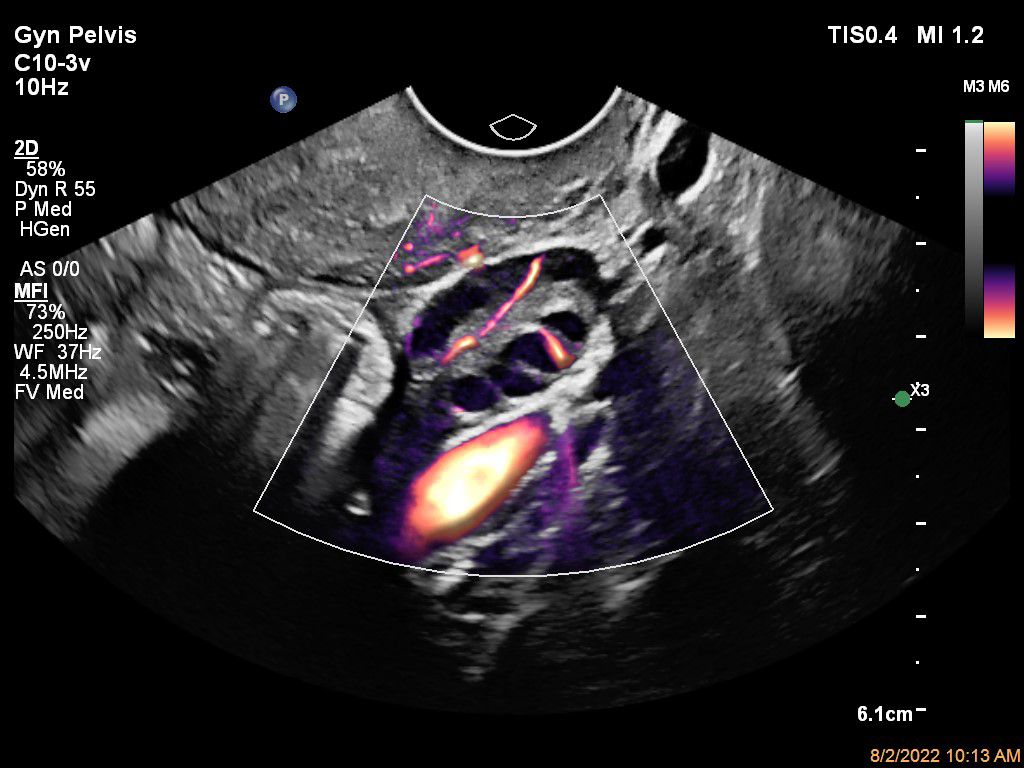

  • Ovary with MFI and Flow Viewer shown using a C10-3v transducer
    Ovary with MFI and Flow Viewer shown using a C10-3v transducer
  • C10-3v Ovarian Perfusion with MFI HD
    C10-3v Ovarian Perfusion with MFI HD
  • C10-3v Ovary Perfusion wit Flow Viewer
    C10-3v Ovary Perfusion wit Flow Viewer
  • C10-3v Ovarian Perfusion with Flow Viewer
    C10-3v Ovarian Perfusion with Flow Viewer
  • Flow Viewer applied to MFI with C10-3v uterus
    Flow Viewer applied to MFI with C10-3v uterus

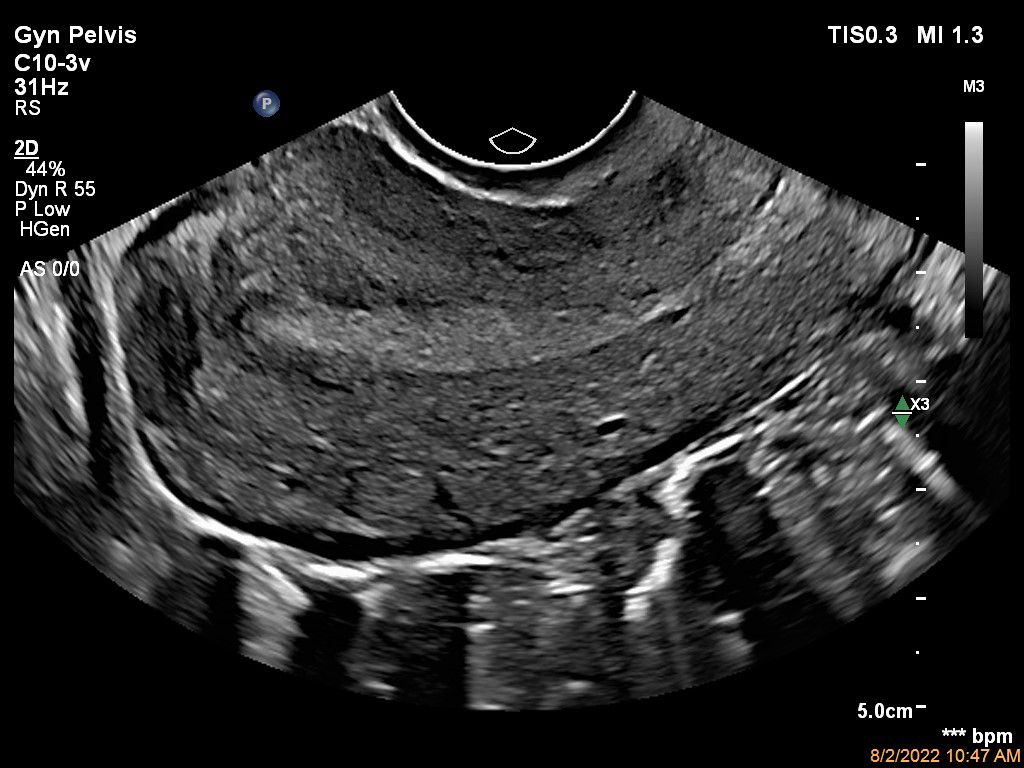

  • Sagittal image of the uterus shown using a C10-3v transducer
    Sagittal image of the uterus shown using a C10-3v transducer
Specifications
  • Specifications
    Technology
    PureWave
    Number of elements
    128
    Frequency range
    10 - 3
    Array Type
    Tightly curved
    Aperture
    26.1
    Field of view
    130°
    Applications
    Endovaginal obstetrics, gynecology, and fertility
    Biopsy capable
    Yes
    Image Fusion Navigation capable
    No

Documentation

EPIQ Elite Elevate Ob/Gyn brochure
PDF|17.49 MB
Philips OB Ultrasound Solutions brochure
PDF|7.23 MB
Affiniti Elevate Ob/Gyn brochure
PDF|19.07 MB
Disclaimer
Available in select countries. Please consult your Philips representative for further details.
