CombiDiagnost R90
Cross functional DRF system
CombiDiagnost R90
Cross functional DRF system
This remote controlled fluoroscopy system in combination with high-end digital radiography is designed for consistent, superb image quality and high room utilization, in a cost effective manner.
Features
Supports diagnostic confidence
Cutting edge digital radiography capabilities convert your traditional fluoroscopy room into a high throughput 2-in-1 solution. Designed to support confident diagnoses with high image quality together with excellent dose management features that benefit both patients and staff.
Detectors that deliver
The CombiDiagnost R90’s large and small SkyPlate wireless portable digital detectors are lightweight to allow for comfortable positioning. They pair nicely with our SkyFlow intelligent software for non-grid bedside exams and can be shared between compatible systems.
Hidden details revealed
Dynamic UNIQUE image processing software delivers consistently uniform clinical image quality for all anatomic regions by automatically adjusting the balance between overexposed and underexposed areas, providing superb quality for both radiography and fluoroscopy studies.
Specifications
- Tube: SRO 33100 ROT380 (for CS)
- Anode heat storage capacity
- 300 kHU (200kJ)
- focal spot
- 0.6 /1.2
- Maximum voltage
- 150 kV
- Ceiling Suspension
- Ceiling height at SID 110 cm (44")
- 2.83 m to 3.21 m (8'8.3" - 10'5.9")
- Collimator
- Motorized, automatic
- Type
- Four-part telescopic column
- Geometry
- Source to Image Distance (SID)
- 113 cm – 183 cm (44’’ to 72’’)
- Wireless detector: SkyPlate Large
- Image matrix size
- 2330 x 2846 pixel
- Detector size
- 35 cm x 43 cm (14" x 17")
- Type
- Digital Csl (Cesium Iodide) flat detector
- Active area
- 34.48 cm x 42.12 cm (13.6" x 16.6")
- Wireless detector: SkyPlate Small
- Image matrix size
- 1500 x 1920 pixel
- Detector size
- 24 cm x 30 cm (app. 10" x 12")
- Type
- Digital Csl (Cesium Iodide) flat detector
- Active area
- 22.2 cm x 28.4 cm (8.7" x 11.2")
- Tube: SRO 33100 ROT380
- Anode heat storage capacity
- 300 kHU (200kJ)
- focal spot
- 0.6 /1.6
- Maximum voltage
- 150 kV
- Tube: SRM 0608 ROT GS 505
- Anode heat storage capacity
- 800 kHU (593kJ)
- focal spot
- 0.6 /0.8
- Maximum voltage
- 125 kV (110 kV in GCF)
- Dynamic Flat Detector
- Pixel size
- 148 µm
- Acquisition mode continious fluoroscopy
- Up to 30 frames per second
- Image matrix size
- 2,874 pixel x 2,840 pixel
- Detector Size
- 43 cm x 43 cm (17"x17")
- Acquisition mode pulsed fluoroscopy
- Up to 20 per second
- Generator
- Power
- 65 kW, 80kW optional
- Fluoroscopy techniques
- Pulsed fluoroscopy (PF), in-pulse controlled
- Grid-controlled fluoroscopy (GCF), in-pulse controlled
- Tube voltage exposure
- 40 - 150 kV
- Tube voltage flouroscopy
- 40 - 125 kV
- Exposure techniques
- Manual: kV-mAs or kV-mA-s
- Automatic Exposure Control (AEC) - Intelligent Exporuse (IQX), In-Pulse controlled
- Automatic kV reduction techniques
- Geometry
- Maximum patient weight
- 284 kg (626 lbs) without limitations
- Motorized compressor
- 3 kg - 15 kg (6.6 lbs - 33.1 lbs) compression force
- Tube column movement range
- 160 cm (63")
- Table tilt angle
- -90°/+90°
- Table height
- 62 cm - 142 cm (24.4"-59.9")

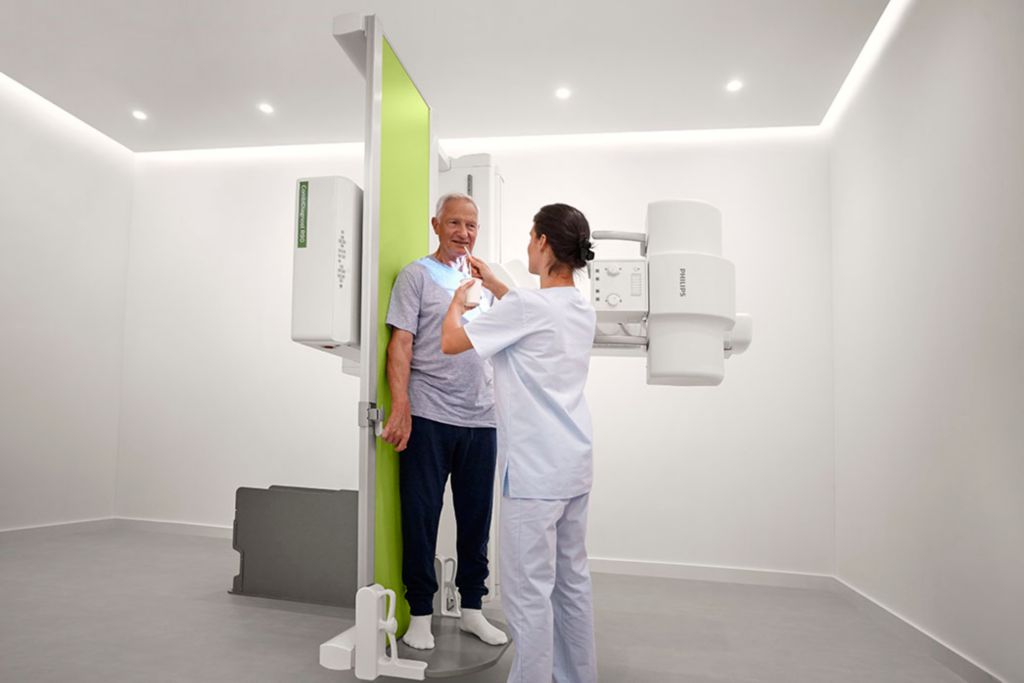

- Digital vertical stand
- Vertical travel
- 30 cm - 180 cm (11.8" - 5'11")
- Detector Size
- SkyPlate detector
- Motorized tilting
- Optional, -20° to +90°
