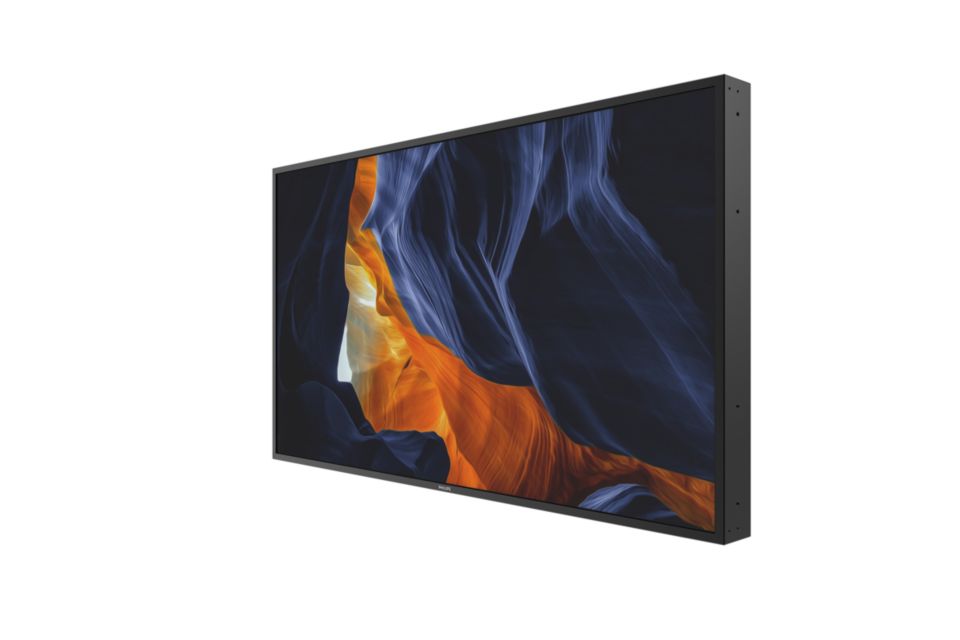

Signage Solutions H-Line Display

55BDL3102H/75

Captivate your audience

Experience your content like never before thanks to high brigteness. At 2500 nits, our new 55 inch display deliver high brightness for excellent legibility and visibility, even in high ambient light environments.

See all benefits

Signage Solutions H-Line Display

Similar products

See all H-Line series

Captivate your audience

With a high brightness screen experience

  • 55"
  • 2500cd/m²
  • Full HD
Optional OPS Insert to create an all-in-one solution

Optional OPS Insert to create an all-in-one solution

Turn your display into an all-in-one digital signage solution and create a display network which is connected, intelligent and secure. Open Pluggable Specification (OPS) is an industry standard slot into which you can add an OPS-standardized media player. This cable free solution gives you the ability to install, use or maintain your hardware whenever you need.

Keep your content up and running with FailOver

Keep your content up and running with FailOver

Keeping your content up and running is critical for demanding commercial applications. While it is unlikely you will face a content disaster, FailOver provides content protection with a revolutionary technology that plays back-up content on screen in the event of a media player failure. FailOver automatically kicks in when the primary input fails. Simply select a primary input connection and a FailOver connection and your ready for instant protection.

CMND: Take control of your displays

CMND: Take control of your displays

A robust display management platform, CMND puts the power back into your hands. Update and manage content with CMND & Create or control your settings with CMND & Control. It's all possible with CMND.

SmartPower for energy saving

SmartPower for energy saving

The backlight intensity can be controlled and pre-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

Save and play content with internal memory

Save and play content with internal memory

Save and play content with internal memory. Upload your media into the display and playback content immediately. Working in conjunction with the internal browser, it also serves as a memory cache when streaming online content. If the network ever fails, the internal memory keeps content running by playing a cached version of the content, ensuring that your media stays up even if the network goes down.

Schedule what you want, when you want with SmartPlayer

Schedule what you want, when you want with SmartPlayer

Turn your USB into a true cost effective digital signage device. Simply save your content (video, audio, pictures) on your USB and plug into your display.Create your playlist and schedule your content via the on screen menu, and enjoy your own created playlists anytime, anywhere.

Connect and control your content via the cloud with HTML5

Connect and control your content via the cloud with HTML5

Connect and control your content via the cloud with the integrated HTML5 browser. Design your signage content online and connect it with a display or with your complete network. Simply plug in a RJ45 internet cable for network connection, connect the display with the dedicated url-address and you are ready to play your cloud based content.

2500 nit brightness for high ambient light applications

Enjoy an excellent visual experience even in areas illuminated by direct sunlight thanks to the 2500 nit panel. The high brightness offers a wide array of new implementation possibilities especially in locations that have high ambient light levels, delivering crystal clear images for all locations where ambient brightness is an issue.

Designed for 24/7 operation for highest accuracy

Because business never sleeps, our signage displays are designed for 24/7 use for highest accuracy and critical environments. Taking advantage of superior components to ensure a higher level of quality, you can count on this range of models for complete around-the-clock reliability.

Technical Specifications

  • Picture/Display

    Diagonal screen size (metric)
    138.7  cm
    Diagonal screen size (inch)
    54.6  inch
    Aspect ratio
    16:9
    Panel resolution
    1920x1080p
    Pixel pitch
    0.63 x 0.63 mm
    Optimum resolution
    1920 x 1080 @ 60Hz
    Brightness
    2500  cd/m²
    Display colors
    16.7 M (8 bits)
    Contrast ratio (typical)
    5000:1
    Dynamic contrast ratio
    500,000:1
    Response time (typical)
    6  ms
    Viewing angle (horizontal)
    178  degree
    Viewing angle (vertical)
    178  degree
  • Connectivity

    Audio output
    • 3.5mm jack
    • External speaker connector
    Video input
    • Component (BNC) (x1)
    • Composite (Share component Y)
    • Display Port1.2 (x1)
    • DVI-D (x1)
    • HDMI 1.4 (x2)
    • VGA (Analog D-Sub) (x1)
    Audio input
    • 3.5 mm jack
    • Audio Left/Right (RCA)
    Other connections
    • AC-out
    • OPS
    • USB 2.0 (x1)
    Video output
    • DisplayPort 1.2 (x1)
    • DVI-I (x1)
    External control
    • RS232C (in/out) 2.5 mm jack
    • RJ45
    • IR (in/out) 3.5 mm jack
  • Convenience

    Placement
    • Landscape
    • Portrait
    Screen saving functions
    Pixel Shift, Low Brightness
    Keyboard control
    • Hidden
    • Lockable
    Remote control signal
    Lockable
    Signal loop through
    • RS232
    • IR Loopthrough
    Ease of installation
    • Smart Insert
    • Carrying Handles
    Energy saving functions
    Smart Power
    Other convenience
    Carrying handles
    Picture performance
    Advanced color control
    Network controllable
    • RS232
    • HDMI (One Wire)
    • LAN (RJ45)
  • Sound

    Built-in speakers
    2 x 10W RMS
  • Power

    Mains power
    100 ~ 240 VAC, 50 ~ 60 Hz
    Consumption (Typical)
    300  W
    Standby power consumption
    <0.5W
  • Supported Display Resolution

    Computer formats
    • 1024 x 768, 60Hz
    • 1280 x 1024, 60Hz
    • 1280 x 768, 60Hz
    • 1280 x 800, 60Hz
    • 1360 x 768, 60Hz
    • 1600 x 1200, 60Hz
    • 1920 x 1080, 60Hz
    • 1920 x 1200, 60Hz
    • 640 x 480, 60, 67, 72, 75Hz
    • 720 x 400, 70Hz
    • 800 x 600, 60, 72, 75Hz
    Video formats
    • 1080i, 25, 30Hz
    • 1080p, 50, 60Hz
    • 480i, 30, 60Hz
    • 480p, 60Hz
    • 576i, 25, 50Hz
    • 576p, 50Hz
    • 720p, 50, 60Hz
  • Dimensions

    Smart Insert mount
    100 x 100mm,100 x 200mm
    Set Width
    1243.2  mm
    Product weight
    32.2  kg
    Set Height
    714  mm
    Set Depth
    137.9  mm
    Set Width (inch)
    48.9  inch
    Set Height (inch)
    28.1  inch
    Wall Mount
    400 x 400 mm, M6
    Set Depth (inch)
    5.43  inch
    Bezel width
    15.6 mm
    Product weight (lb)
    78.94  lb
    Smart insert width
    100  mm
    Smart insert height
    200  mm
  • Operating conditions

    Altitude
    0 ~ 3000 m
    Temperature range (operation)
    0 ~ 40  °C
    MTBF
    50,000  hour(s)
    Relative humidity
    20 ~ 80(operation),5 - 95% (storage)  %
    Temperature range (storage)
    -20 ~ 60  °C
  • Multimedia Applications

    USB Playback Video
    • ISM
    • M2TS
    • M4V
    • Manifest
    • MK3D
    • MKV
    • MP4
    • MPD
    • MPEG
    • MPG
    • MTS
    • TS
    • VOB
    USB Playback Picture
    • BMP
    • GIF
    • JPEG
    • PNG
    USB Playback Audio
    • AAC
    • LPCM
    • M4A
    • MP3
    • WMA
  • Accessories

    Included accessories
    • AC Power Cord
    • Batteries for remote control
    • Quick start guide
    • Remote Control
    • RS232 cable
    Included Accessories
    • RS232 daisy-chain cable
    • Edge Alignment Kit (1) -1 pcs
    • Edge Alignment Kit (2) - 2 pcs
    • Logo guide
    • Philips logo (x1)
    • Thumbscrew (8pcs)
  • Miscellaneous

    On-Screen Display Languages
    • English
    • French
    • German
    • Italian
    • Polish
    • Russian
    • Spanish
    • Turkish
    • Simplified Chinese
    • Traditional Chinese
    • Arabic
    • Japanese
    • Portuguese
    • Dutch
    Warranty
    3 year warranty
    Regulatory approvals
    • CB
    • CE
    • UL/cUL
    • EAC
    • EMF
    • FCC, Class A
    • PSB
    • PSE
    • VCCI

What's in the box?

Other items in the box

  • AC Power Cord
  • Batteries for remote control
  • Quick start guide
  • Remote Control
  • RS232 cable
