1

large display

300WN5QS/97

large display

300WN5QS/97

excellent and robust display solution

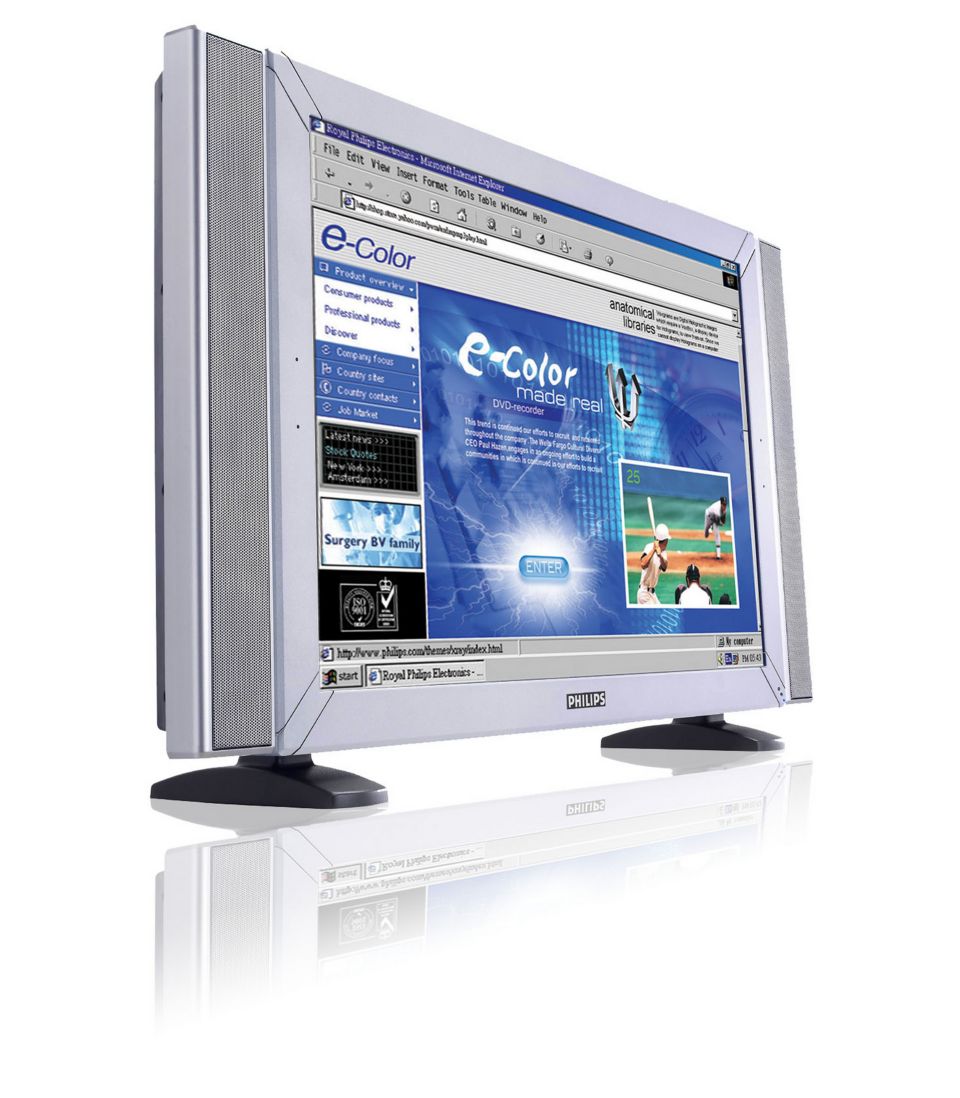

Excellent and robust, the network-controlled Philips 300WN5 LCD monitor provides a reliable and multi-function solution with Philips leading display technology that guarantees your message gets out to the public crystal clear. See all benefits

Unfortunately this product is no longer available

large display

excellent and robust display solution

Excellent and robust, the network-controlled Philips 300WN5 LCD monitor provides a reliable and multi-function solution with Philips leading display technology that guarantees your message gets out to the public crystal clear. See all benefits

excellent and robust display solution

Excellent and robust, the network-controlled Philips 300WN5 LCD monitor provides a reliable and multi-function solution with Philips leading display technology that guarantees your message gets out to the public crystal clear. See all benefits

Unfortunately this product is no longer available

large display

excellent and robust display solution

Excellent and robust, the network-controlled Philips 300WN5 LCD monitor provides a reliable and multi-function solution with Philips leading display technology that guarantees your message gets out to the public crystal clear. See all benefits

Similar products

See all Unmapped

excellent and robust display solution

  • 30"
  • WXGA

Monitor is network controllable for remote management

Network controllability allows user to control and adjust monitors remotely through RS232 protocol.

Brightness automatically adjusts with ambient conditions

The adjustment of display settings to correspond with ambient light without user intervention.

Automatic alert provides advance warning of overheating

Automatic overheat warning generates an alert and delivers it to the designated system manager when a display device's operating temperature exceeds designated levels.

Lifecycle is longer than plasma displays

A longer lifecycle means a lower total cost of ownership and adds up to long-term savings.

Intelligent power management for lower consumption

Intelligent power management employs energy-efficient technologies in product design to reduce power consumption and significantly lower the total cost of ownership.

Hidden control buttons prevent tampering with settings

Control buttons placed at the rear of a monitor used for public display to prevent tampering with display settings.

Easy plug-and-play DVI for a true digital experience

A DVI cable is shipped with the product to provide high quality digital display.

WXGA, wide format, 1280x768 resolution for sharper display

For graphics monitors, the screen resolution signifies the number of dots (pixels) on the entire screen. WXGA provides the resolutions 1280 by 768 pixels. In addition, WXGA allows monitors to be non-interlaced. This ensures a better display performance and accurate color display effect.

Ready to display SDTV, EDTV and HDTV formats

A display device ready to display standard definition television, extended definition television and high definition television signals, which are commonly used by TV systems in the world.

DCDi™ eliminates combing and jagged edges for a sharp image

DCDi enhances the quality of all images by eliminating the stair-step jagged edges so often seen on progressive scan displays resulting in natural images with exceptional detail.

PiP allows watching a second source simultaneously

Provides the ability to watch simultaneously two different sources, either two video sources or a combination with data/graphics

Technical Specifications

  • Picture/Display

    LCD panel type
    • 1280 x 768 pixels
    • Anti-glare polarizer
    Panel Size
    29.53"/ 75cm
    Pixel pitch
    0.5025 x 0.1675 mm
    Brightness
    600  cd/m²
    Contrast ratio (typical)
    800:1
    Display colors
    16.7 M
    Viewing angle
    @ C/R > 10
    Viewing angle (horizontal)
    170  degree
    Viewing angle (vertical)
    170  degree
    Response time (typical)
    16  ms
    White Chromaticity, 5300K
    x = 0.328 / y = 0.344
    White Chromaticity, 9300K
    x = 0.283 / y = 0.297
    White Chromaticity, 6500K
    x = 0.313 / y = 0.329
    Maximum Resolution
    1280 x 768 @ 60Hz
    Optimum Resolution
    1280 x 768 @ 60Hz
    Factory Preset Modes
    12 modes
    Horizontal Scanning Frequency
    31 - 49 kHz
    Refresh Rate (V)
    60 Hz
    sRGB
    Yes
    Aspect ratio
    15:9
    Picture enhancement
    • Picture in Picture
    • Progressive Scan
    • De-interlacer
  • Connectivity

    AV input
    • Component (YPbPr) x1
    • Composite (CVBS) x1
    • S-video x1
    • SCART x1
    • Audio (L/R) for YPbPr x1
    • Audio (L/R) x1
    • 75 ohm RF (TV) x1
    AV output
    • Composite (CVBS) x1
    • Audio (L/R) x1
    • 3.5 mm jack (L/R) x1
    • Ext 3.5 mm jack x1
    PC
    • D-Sub x1
    • DVI-D x1
    • 3.5 mm PC audio input x1
    • RS232 x1
  • Convenience

    Detachable Audio
    5W RMSx2(80PMPO)Stereo Speaker
    Software
    Virtual surrounding sound
    Child Protection
    Parental Control
    User convenience
    • On-screen Display
    • Automatic Brightness Control
    • Automatic Overheat Warning
    Monitor Controls
    • Left/Right
    • Menu (OK)
    • Power On/Off
    • Up/Down
    • Input select
    OSD Languages
    • English
    • French
    • German
    • Italian
    • Spanish
    • Simplified Chinese
    Plug & Play Compatibility
    • sRGB
    • Windows 98/ME/2000/XP
    Regulatory Approvals
    • CE Mark
    • FCC-B, UL, CSA
    • NUTEK, Energy Star
    Teletext
    10 pages (EU,AP)
    Closed caption
    CC full text
    VESA Mount
    100 x 100 mm
  • Accessories

    Included Accessories
    • AC Power Cord
    • Remote Control
    • VGA cable
    • DVI-D cable
    • Speakers (L/R)
    Stand
    1 set
    User Manual
    Yes
  • Dimensions

    Depth (with speakers)
    183  mm
    Height (with speakers)
    505  mm
    Width (with speakers)
    867.7  mm
    Depth (w/o base & speakers)
    115  mm
    Height (w/o base & speakers)
    469.3  mm
    Width (w/o base & speakers)
    726.7  mm
    MTBF
    50,000 hrs
    Relative humidity
    20% - 80%
    Temperature range (operation)
    5°C to 35°C
    Temperature range (storage)
    -20°C to 60°C
    Weight
    16  kg
  • Power

    Complies with
    • Energy Star
    • NUTEK
    Consumption (On mode)
    130W (PC), 150W (TV)
    Consumption (Off Mode)
    < 2 W
    Power LED indicator
    • Operation - Blue
    • Stand by/sleep - Amber
    Power supply
    Built-in
  • Supported Display Resolution

    Computer formats
    • 640 x 480, 60Hz
    • 800 x 600, 60Hz
    • 1024 x 768, 60Hz
    • 1280 x 768, 60Hz
    Video formats
    • 480i, 60Hz
    • 480p, 60Hz
    • 576i, 50Hz
    • 576p, 50Hz
    • 720p, 50, 60Hz
    • 1080i, 50, 60Hz
  • Tuner/Reception/Transmission

    TV system
    • NTSC
    • PAL

What's in the box?

Other items in the box

  • AC Power Cord
  • Remote Control
  • VGA cable
  • DVI-D cable
  • Speakers (L/R)
